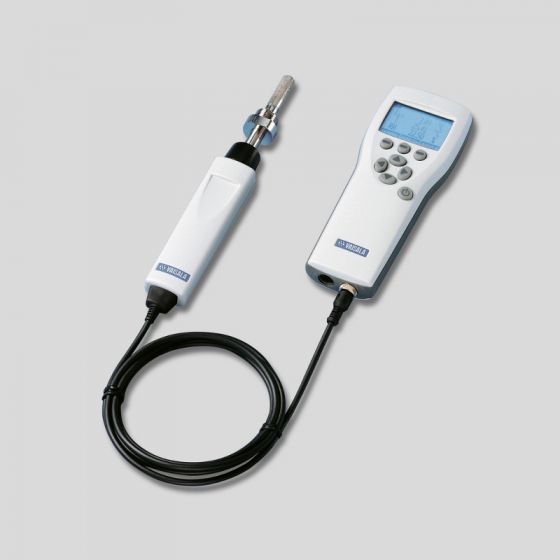

Vaisala -80 To 20degc Dm70 Hand Held Dewpoint Meter,Model Dm70,Portable Dew Point

Name: Vaisala -80 To 20degc Dm70 Hand Held Dewpoint Meter,Model Dm70,Portable Dew Point
Brand: ALFA ENGINEERING SOLUTIONS
Price: 250000.0 INR
Availability: InStock

Price 250000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vaisala -80 To 20degc Dm70 Hand Held Dewpoint Meter,Model Dm70,Portable Dew Point Specification

Interface Type
MI70 Link software via USB

Response Time
Typically 15 seconds for Td< -60C

Gas Pressure
Maximum 10 bar

Accuracy
2C dew point

Equipment Type
Hand Held Dewpoint Meter

Operating Voltage
Battery operated, 12 VDC adapter supported

Features
Portable, high-accuracy, graphical display, data logging capability

Display Type
Graphical LCD display

Temperature
-10 to +60C (operating)

Application
Portable dew point measurement of compressed air and gases

Power Supply
Rechargeable battery or 12 VDC mains adapter

Resolution
0.1C dew point

Measuring Range
-80 to +20C dew point

Port Size
Quick connect fitting

Humidity
0 to 100% RH (non-condensing)

Automation Grade
Manual

Mounting Type
Hand-held

Usage
Field and laboratory use

Machine Weight
0.58 kg

Control Mode
Manual

Calibration Interval
Recommended annually

Probe Compatibility
Works with DMP74A, DMP74B, DMP74C probes

Sensor Type
Vaisala DRYCAP® thin-film polymer sensor

Data Logging
Up to 2700 data points

Dimensions
78 mm x 185 mm x 38 mm

Storage Temperature
-40 to +70°C

Enclosure Protection
IP54

Battery Life
Typical 48 hours

Vaisala -80 To 20degc Dm70 Hand Held Dewpoint Meter,Model Dm70,Portable Dew Point Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Vaisala -80 To 20degc Dm70 Hand Held Dewpoint Meter,Model Dm70,Portable Dew Point

Product Specification

Model Name/Number	DM70, Portable dew point
Usage/Application	Industrial
Brand	Vaisala
Measuring Range	-80 to 20DegC
Warranty	2 Year
Operating Temperature	0-60 Degree Celsius
analog output	0-5V

Versatile Dew Point Measurement

Engineered for accuracy and adaptability, the DM70 dewpoint meter easily measures dew point from -80C to +20C, ensuring suitability across a wide range of industrial and laboratory scenarios. Its compatibility with multiple probes and durable build enables efficient monitoring of compressed air and gases in demanding environments.

Advanced Features for Practical Use

Equipped with intuitive controls, a graphical LCD display, and rapid sensor response, the DM70 delivers on-site diagnostics and data logging with ease. The device stores up to 2700 measurement points, allows quick field operation, and supports convenient data transfer to computers via USB and MI70 Link software.

Reliable and Portable Design

With a rugged IP54-protected casing, lightweight construction, and up to 48 hours of battery life, the DM70 is perfect for field professionals. The hand-held meter allows easy transportation and use in diverse locations, while its annual calibration recommendation ensures ongoing measurement accuracy.

FAQ's of Vaisala -80 To 20degc Dm70 Hand Held Dewpoint Meter,Model Dm70,Portable Dew Point:

Q: How does the Vaisala DM70 Dewpoint Meter measure dew point in compressed air and gases?

A: The DM70 utilizes a highly sensitive Vaisala DRYCAP thin-film polymer sensor to detect and measure the dew point in compressed air and various gases. This technology provides fast and accurate readings, ensuring reliable monitoring in most industrial applications.

Q: What is the data logging capability of the DM70, and how can logged data be accessed?

A: The DM70 can store up to 2,700 data points internally. Recorded data can be easily accessed and transferred to a computer using the MI70 Link software via USB, enabling in-depth analysis and convenient record-keeping.

Q: When is it recommended to recalibrate the DM70 Dewpoint Meter for optimal accuracy?

A: For the best measurement accuracy, Vaisala recommends recalibrating the DM70 annually. Regular calibration helps maintain the meter's 2C dew point accuracy throughout its operational lifespan.

Q: Where can the DM70 Dewpoint Meter be used effectively?

A: The DM70 is designed for field and laboratory use, performing reliably in a wide range of settings such as industrial plants, research facilities, and wherever portable, high-accuracy dew point measurement is required.

Q: What are the main benefits of using the DM70 Dewpoint Meter?

A: Key benefits include accurate and fast dew point measurements, portable design, robust IP54 protection, compatibility with multiple probes, extensive data logging, and secure data transfer-making it invaluable for both troubleshooting and routine monitoring.

Q: How long does the battery of the DM70 last during operation, and what are the powering options?

A: The DM70 typically operates for up to 48 hours on a full battery charge. It can be powered either by its rechargeable battery or through a 12 VDC mains adapter for extended use.
